# Site Plans

## What are Site Plans?

Site Plans show the layout and/or relationship of devices to one another. Site Plans use (import) map images and allow graphical representations of Site Items to be placed on the map image.

These Site Items can be placed on the map images as they are located in the real world and can be hardware devices, (e.g. I/O Interfaces), or logical entities, (e.g. Access Zones). The following items can be placed on a Site Plan:\
\
\- All hardware devices\
\- Servers\
\- Access Zones\
\- Alarm Zones\
\- Doors\
\- Interlock Groups\
\- Elevator Cars and Elevator Car HLIs\
\- Services and Workstations\
\- External Systems\
\- Intercom Systems\
\- Macros\
\- Logic Blocks\
\- Links to other Site Plans

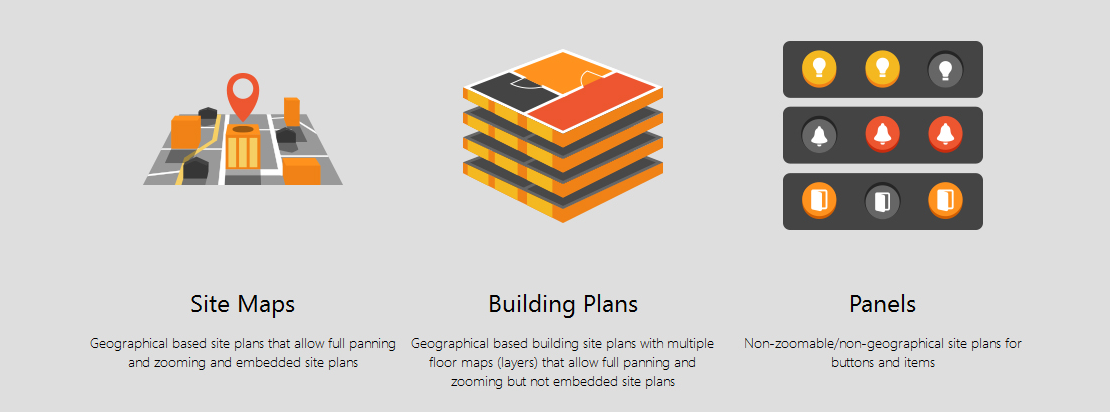

## What are the different Site Plan Types?

<figure><img src="https://328339335-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F6bM8WhlBE9BYizPWJaPN%2Fuploads%2Fgit-blob-2df48423f0b0adf919d8cfdb308887df897b9770%2FSite%20Plans.png?alt=media" alt=""><figcaption></figcaption></figure>

## Supported Image File Formats

.png, .jpeg, .bmp, .gif, .pdf,.emf, .wmf

## Configuration

Refer to the "Configuring a new site plan viewer" topic in the Operator Video Library for more information on configuring site plans.

***

## What is Site Plan Transparency?

Site Plan Transparency is a display feature that lets an operator set a Site Plan shape's or icon's line / area colour to transparent. It is useful when a shape's border or fill would otherwise obscure the underlying plan.

The feature enables an operator to:

* Change the **line / area border colour** for a shape on a Site Plan to **transparent**
* Change an **icon's** Site Plan line / area colour to **transparent**


---
