# T30 keypad
Reference T30 reader variants, door requirements, and code-only and PIN access behavior.

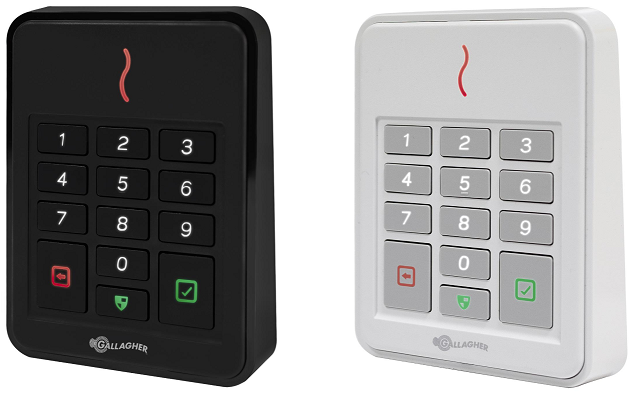

### T30 keypad reader
The T30 is a lower-cost solution for sites that want card + PIN and code-only access without the cost of T20 terminals. It includes a keypad but no screen.
> ⚠️ **The T30 must be attached to a Door.** If the keypad is not responsive, verify that the reader is configured to a Door in Command Centre.
> ⚠️ **The T30 is HBUS only.** There is no way to connect it via CardaxIV. That functionality is not present in the T30 hardware.
***
### T30 variants
| Part Number | Description |
| ----------- | ----------------------------------- |
| C300490 | T30 Multi Tech Keypad Reader, Black |
| C300491 | T30 Multi Tech Keypad Reader, White |
| C300495 | T30 MIFARE® Keypad Reader, Black |
| C300496 | T30 MIFARE® Keypad Reader, White |
> ⚠️ **T30 "Multitech" does NOT include 125 kHz.** In this model, "Multi Tech" means MIFARE + Bluetooth only. No version of the T30 supports 125 kHz. This technology has been deprecated in this model.
***
### Code-only and PIN access behavior
The T30 can arm a single alarm zone associated to the access zone, but cannot arm via user code entry (unlike the T20). The table below shows expected behaviour for code-only and PIN access options depending on alarm zone state.
| Alarm Zone | PIN is User Code | Code Only — Card and no PIN | Code Only — Card and PIN | Credential at T30 | Result |
| ---------- | ---------------- | --------------------------- | ------------------------ | ----------------- | -------------- |
| Disarmed | | Enabled | | Code only Code | Access Granted |
| Disarmed | | | Enabled | Code only Code | Access Granted |
| Armed | | Enabled | | Code only Code | Access Denied |
| Armed | | | Enabled | Code only Code | Access Denied |
| Disarmed | ✓ | Enabled | | User Code | Access Granted |
| Disarmed | ✓ | | Enabled | User Code | Access Denied |
| Armed | ✓ | Enabled | | User Code | Access Granted |
| Armed | ✓ | | Enabled | User Code | Access Denied |
> **Note:** The alarm zone will be disarmed when access is granted, assuming the cardholder has the disarm privilege. However, the T30 **cannot be used to arm** the alarm zone via user code entry. This differs from the T20, which can arm the alarm zone if suitably configured.
***
