# Configure config.json

The three config.json entries, where each value comes from, and restarting the service.

The configuration file is at:

```
C:\ProgramData\Kenai\Kenai Connector\config.json
```

{% hint style="info" %}
`ProgramData` is a hidden folder. Show hidden items in File Explorer, or paste the path into the address bar.
{% endhint %}

Copy the file before editing. The helper text in the file marks each insertion point.

## The three entries

Replace the placeholder text only.

```json
"ConnectivityApiKey": "Generate on Kenai DASHBOARD",
"ConnectivityEntityHierarchy": "Retrieve from Kenai Dashboard",
"GLGCSAuthHeader": "GGL-API-KEY provisioned-api-key-value",
```

| Entry                         | Replace                         | Source                 | How to get it                                                                                                                                                                                                                                             |
| ----------------------------- | ------------------------------- | ---------------------- | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| `ConnectivityApiKey`          | `Generate on Kenai DASHBOARD`   | Kenai dashboard        | **Settings → Platform services → API tokens** → create a token. Name it, set scope to Kenai Connector, select the sites.                                                                                                                                  |
| `ConnectivityEntityHierarchy` | `Retrieve from Kenai Dashboard` | Kenai dashboard        | Organisation navigation, top left → right-click the organisation → copy the site value. See below.                                                                                                                                                        |
| `GLGCSAuthHeader`             | `provisioned-api-key-value`     | Gallagher Configurator | The REST API key created in Gallagher for Kenai. Keep `GGL-API-KEY` and the space in front of it. See [Gallagher operator privileges](/knowledge-hub/kenai-user-guide/setting-up-a-new-environment/the-kenai-connector/gallagher-operator-privileges.md). |

{% hint style="warning" %}
The API token is shown once only. Copy it immediately, and delete any scratch copy afterwards.
{% endhint %}

## Reading the entity hierarchy

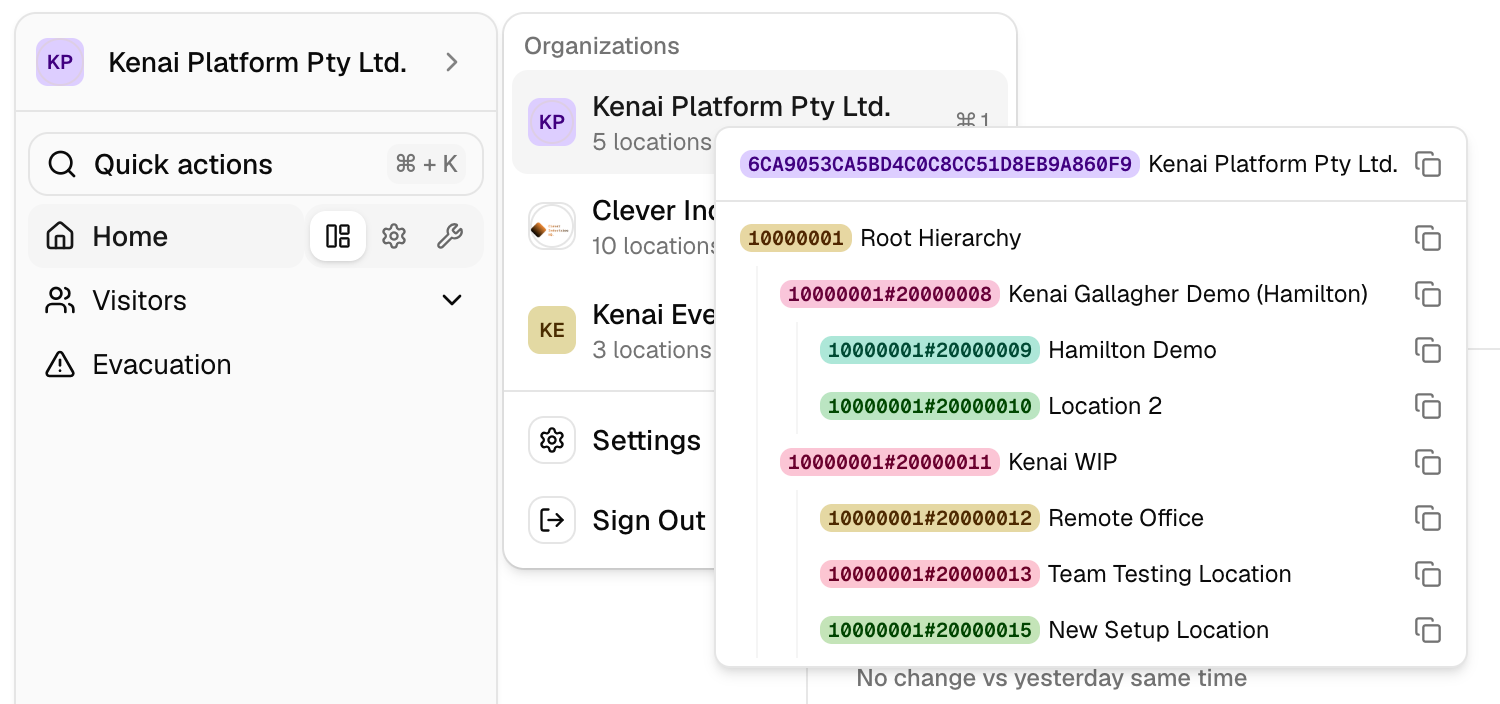

<figure><img src="https://957655699-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FF1z3yfyDYtuAfBcFYrMh%2Fuploads%2FS20NGZ6OM4LoqZEHTEG2%2Fentity-hierarchy.png?alt=media" alt="Entity hierarchy panel showing organisation ID, root, sites and locations"><figcaption><p>Right-click the organisation to open the entity hierarchy</p></figcaption></figure>

| Level           | What it looks like                             | Use it?                     |
| --------------- | ---------------------------------------------- | --------------------------- |
| Organisation ID | The long string at the top                     | No                          |
| Root hierarchy  | Eight characters on their own                  | No                          |
| **Site**        | **Eight characters, a hash, eight characters** | **Yes. Use the copy icon.** |
| Locations       | Everything indented beneath the site           | No                          |

## Save and restart

1. Save the file back as `config.json` and nothing else. A renamed file (for example `config.json.txt`) will not be read.
2. Go back to Windows Services and start the **Kenai Connector** service.


---
